GODIAG GT100 PLUS GPT ENET DOIP 24V-12V OBDII Breakout Box

GODIAG GT100 PLUS GPT is a professional OBDII breakout box and bench connection tool for ECU diagnostics, programming, key programming support, voltage monitoring and signal testing.

The tool supports GPT connection, DOIP / ENET communication, OBDII bench connection and 24V to 12V voltage conversion, making it suitable for automotive locksmiths, ECU repair technicians and diagnostic workshops.

Main Features

• OBDII breakout box for diagnostics and programming work
• Supports GPT connection for ECU read/write operations with compatible tools
• Supports DOIP / ENET communication
• Supports OBDII bench connection with CAN Bus and K-Line
• 24V to 12V voltage conversion for truck and heavy-duty vehicle applications
• Real-time voltage and current display
• Helps check OBDII communication status and wiring errors
• Useful for ECU bench work, cloning, programming and module testing
• Can be used as auxiliary power support during battery replacement

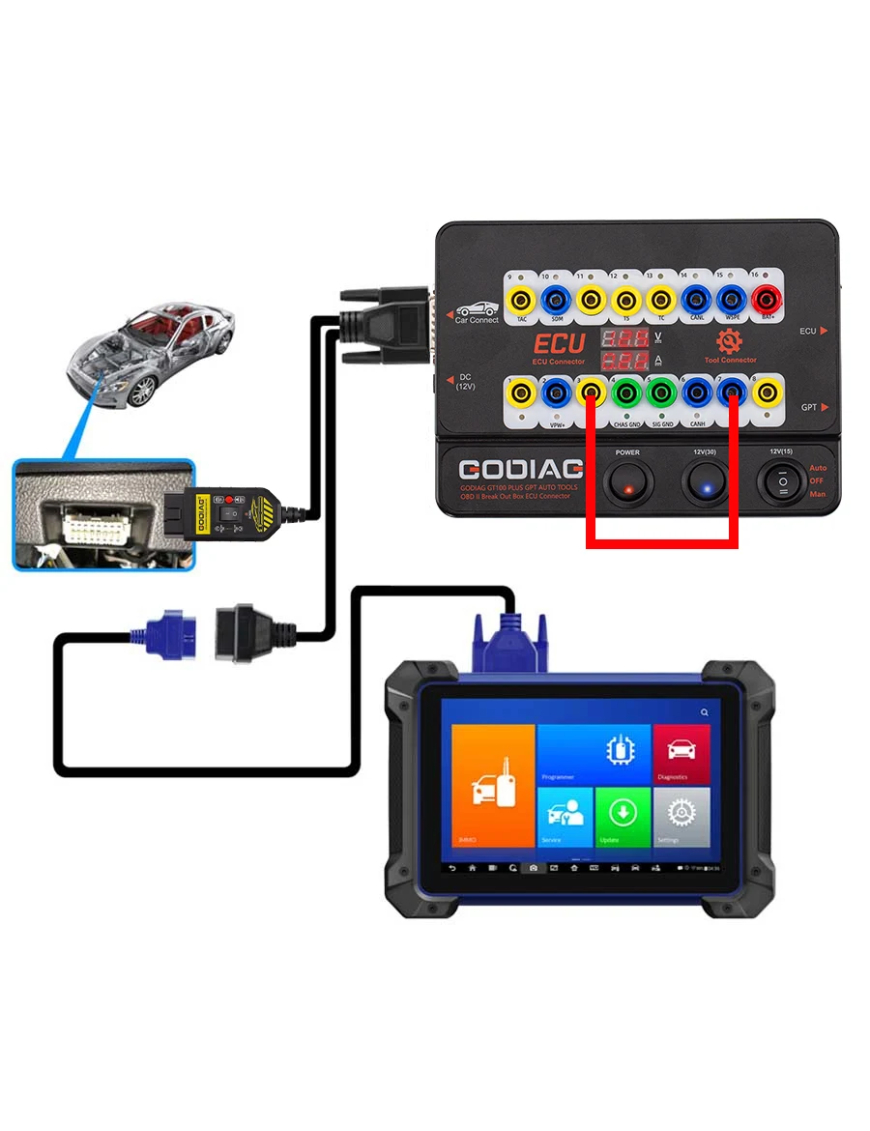

GPT, DOIP and ENET Support

GT100 PLUS GPT supports GPT connection methods for compatible ECU read/write operations and can be used with external tools such as ECU programmers and flash tools. It also supports DOIP / ENET communication for supported vehicles and diagnostic/programming platforms.

DOIP / ENET functions depend on the external diagnostic or programming software used with the device. No diagnostic software is included with this breakout box.

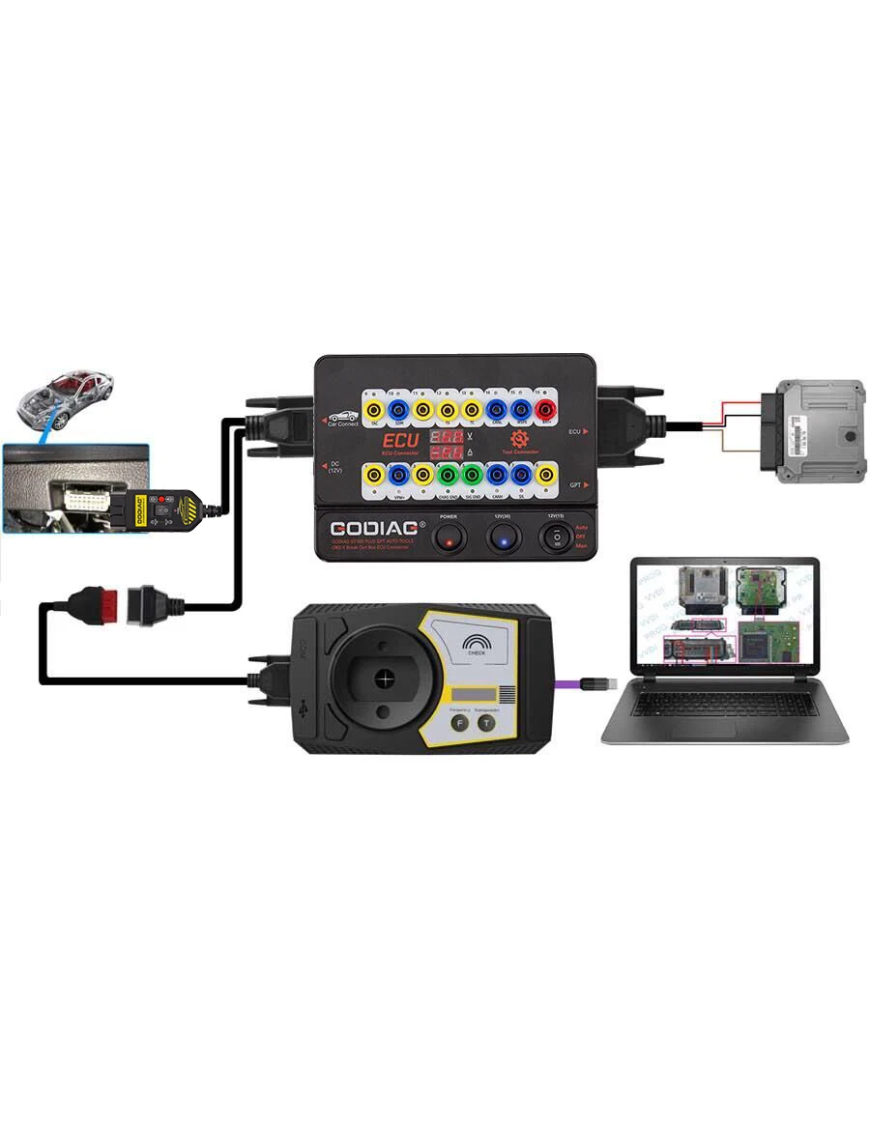

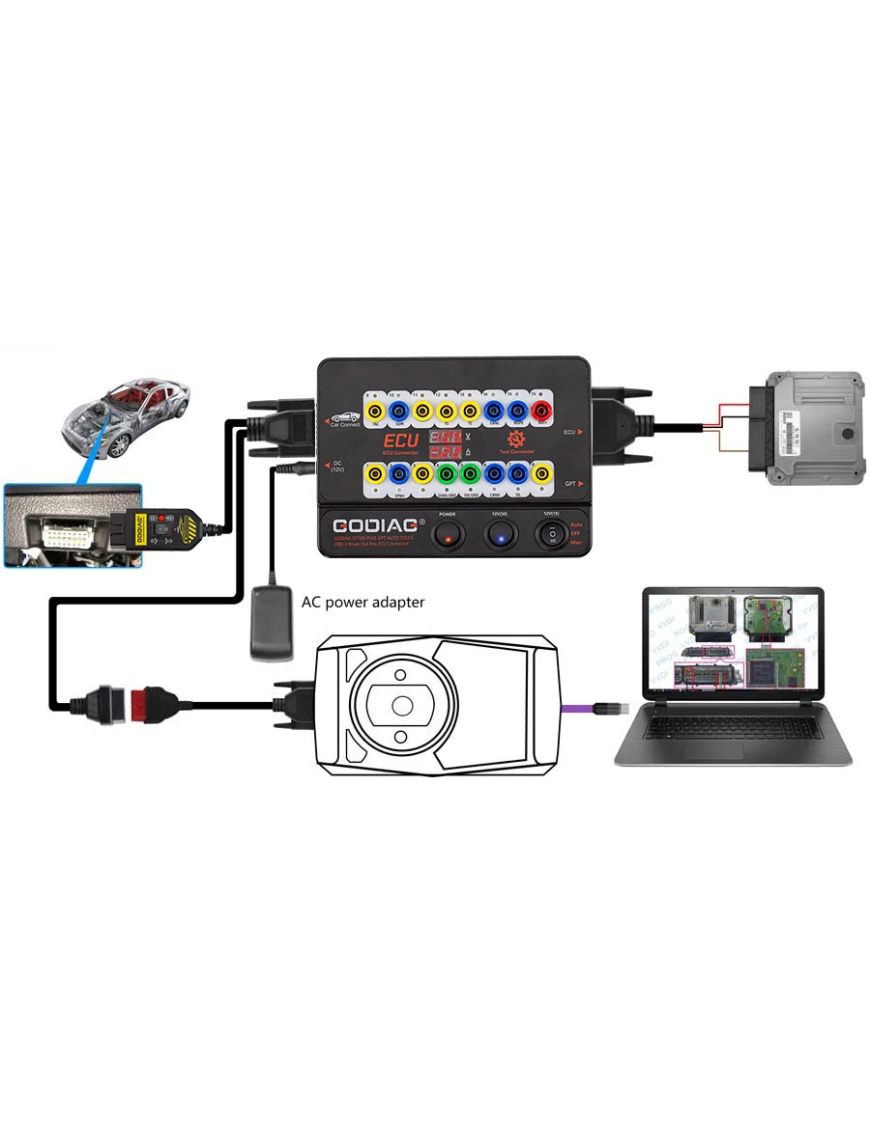

OBDII Breakout Box and Bench ECU Connection

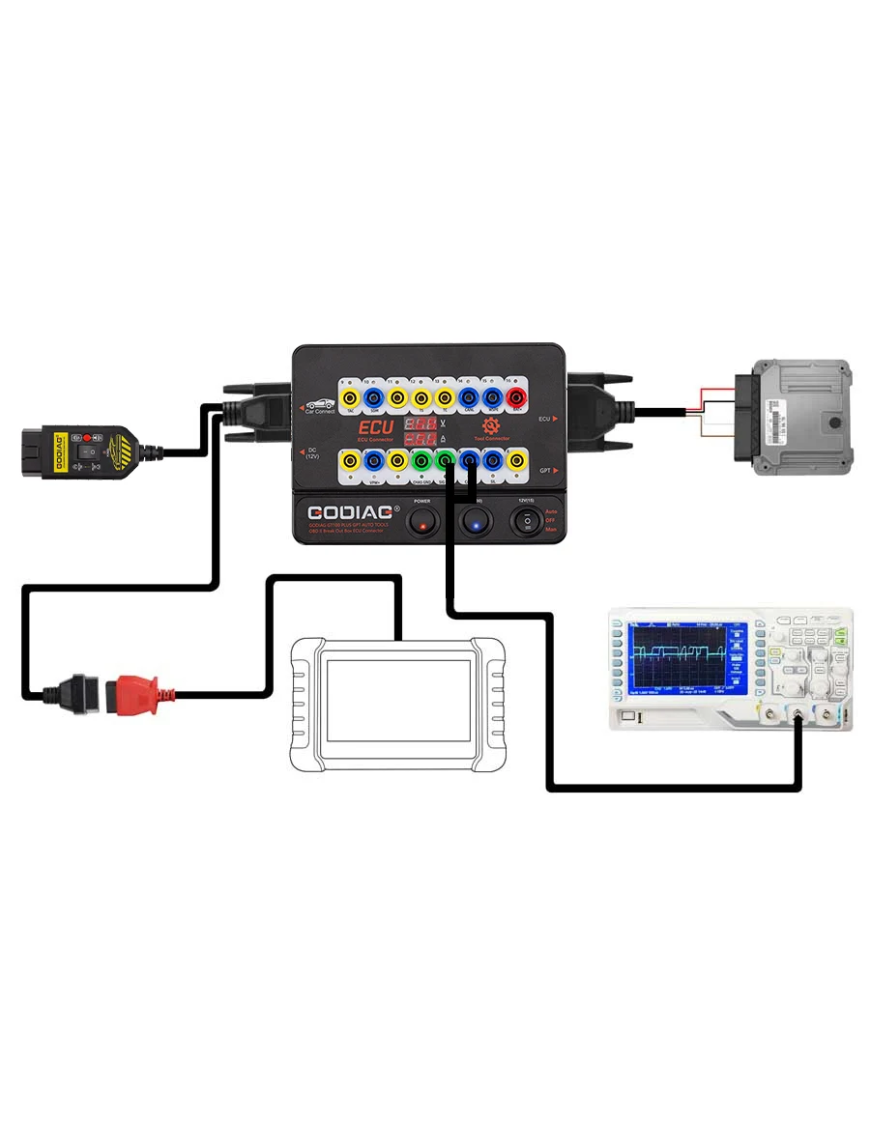

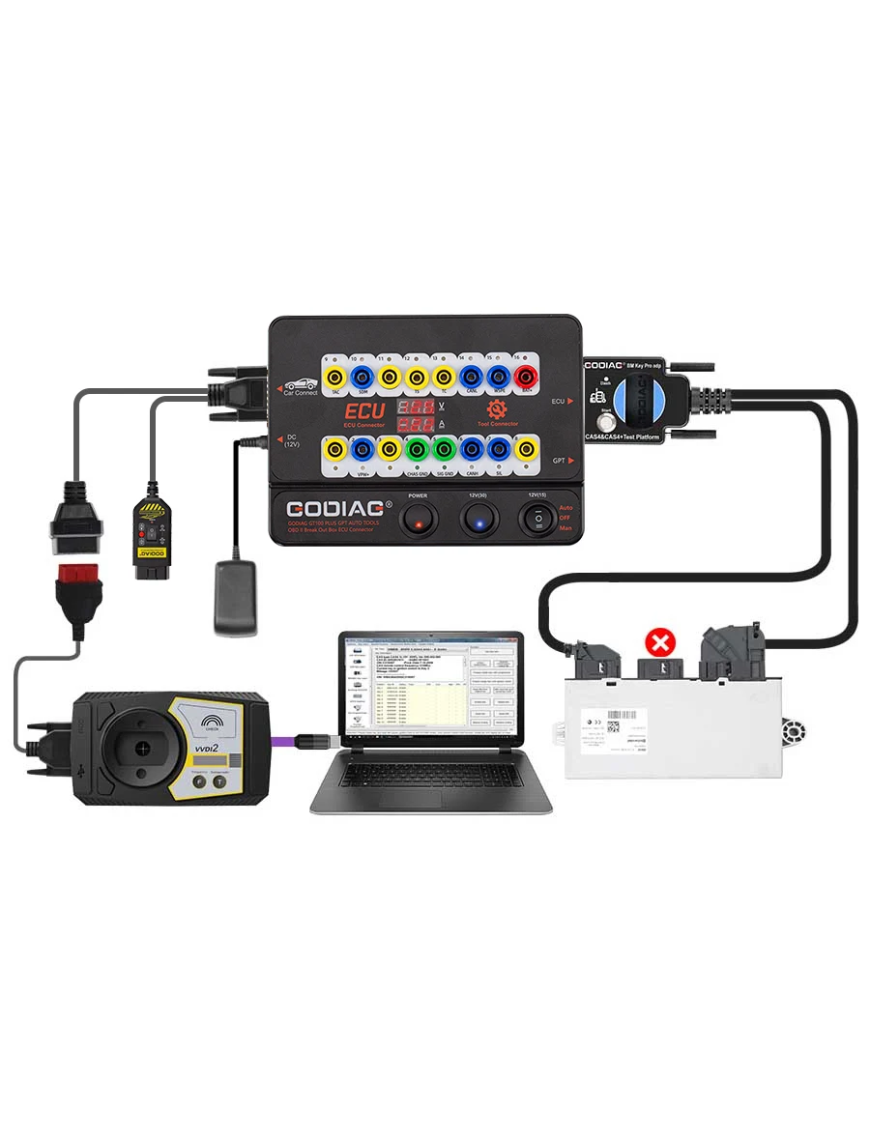

The device allows technicians to connect to ECU modules on the bench, monitor communication lines and check power supply conditions before diagnostic or programming work. It is useful for reducing the risk of wiring mistakes and for quickly identifying abnormal voltage or current conditions.

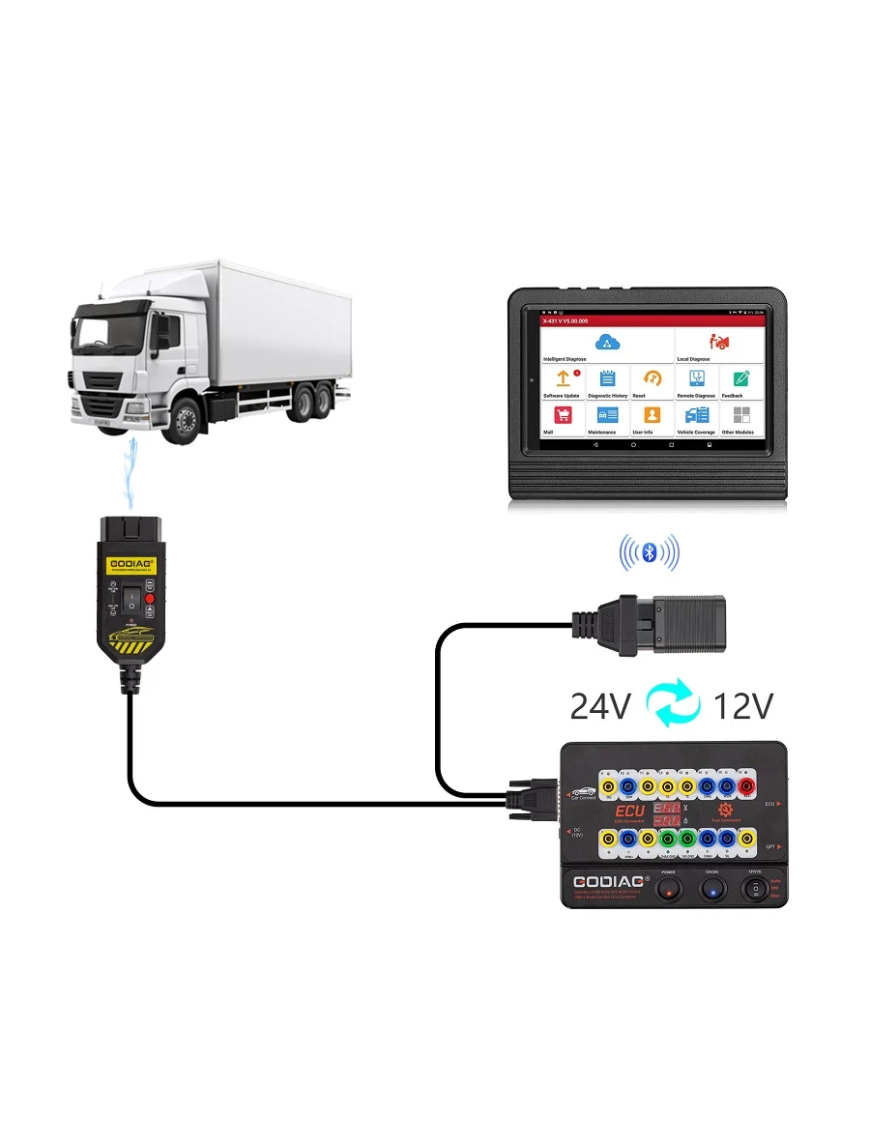

24V to 12V Voltage Conversion

GODIAG GT100 PLUS GPT can convert a 24V diagnostic interface signal from trucks and commercial vehicles to a 12V level suitable for standard diagnostic equipment. This makes it useful for workshops working with both passenger cars and heavier vehicle applications.

Voltage and Current Monitoring

The built-in display shows real-time voltage and current values. This helps technicians check whether the power supply is normal and identify possible wiring errors, short circuits or damaged ECU modules before continuing with diagnostics or programming.

Supported Applications

• ECU bench diagnostics and programming support
• ECU cloning and repair work with compatible external tools
• OBDII communication status checking
• Key programming support for selected vehicle systems
• DOIP / ENET diagnostics and coding support with compatible software
• 24V truck diagnostic interface conversion to 12V

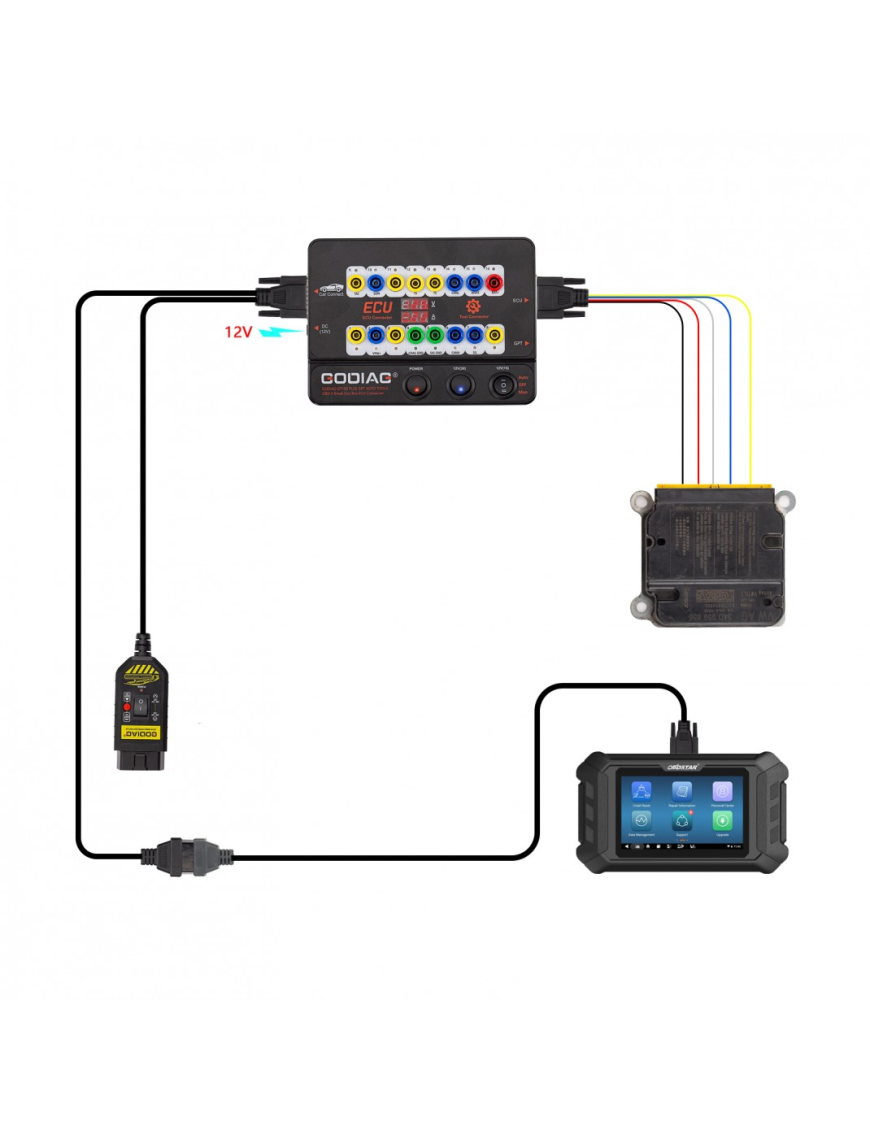

• Airbag ECU and module communication testing

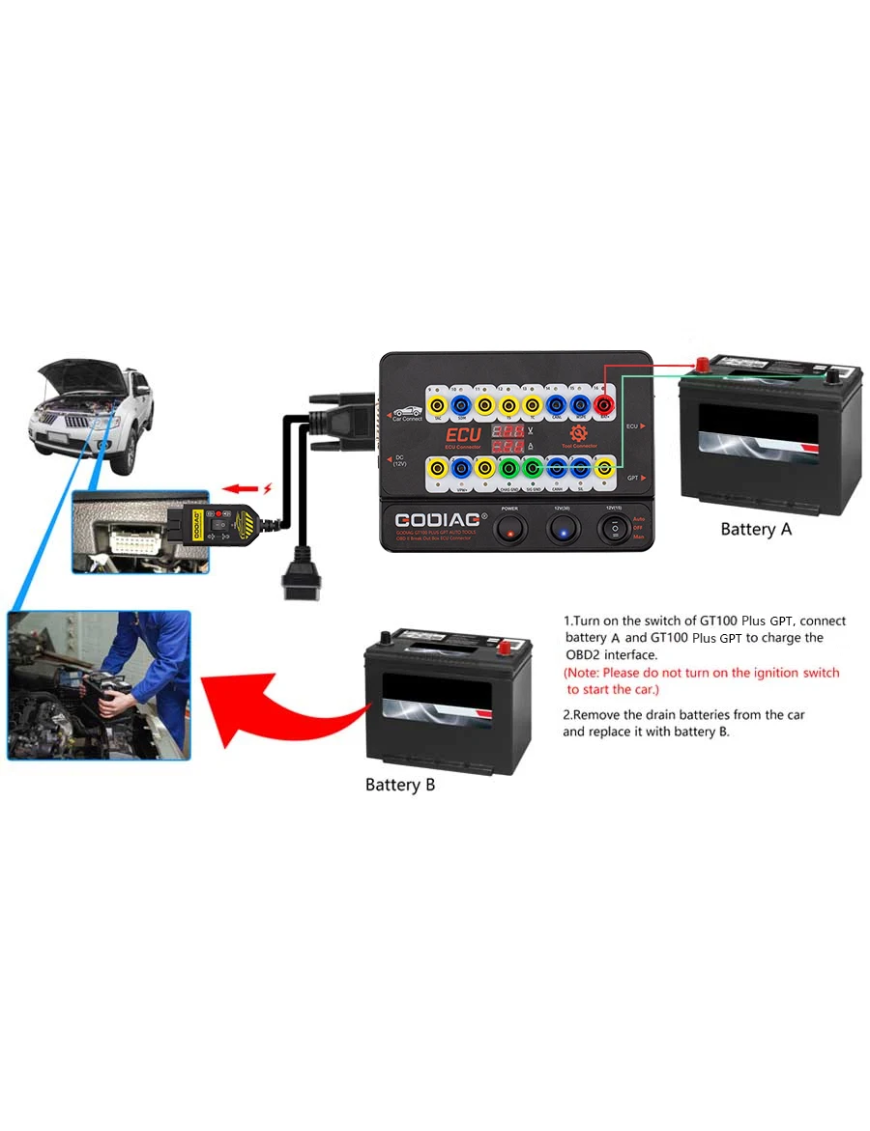

• Auxiliary power supply support during battery replacement

Technical Information

• Brand: GODIAG
• Model: GT100 PLUS GPT
• Product type: OBDII breakout box / bench connection tool
• Standard diagnostic port: OBDII 16-pin
• Input voltage: DC 9V–24V
• Power adapter: AC 100V–240V input, DC 12.5V / 2.5A output
• Supported communication: CAN, K-Line, VPW, PWM, KWP2000, DOIP, ENET, GPT boot
• Core display function: Real-time voltage and current readout
• Dimensions: approx. 23 x 18 x 7 cm
• Operating temperature: -20°C to 70°C

Why Buy from VVDI.eu?

• EU-based supplier with stock shipped from Bulgaria, European Union
• No import customs procedures for deliveries within the European Union
• 0% VAT for eligible EU business customers with a valid VAT number verified through VIES
• Tracked international delivery
• Professional support before and after purchase

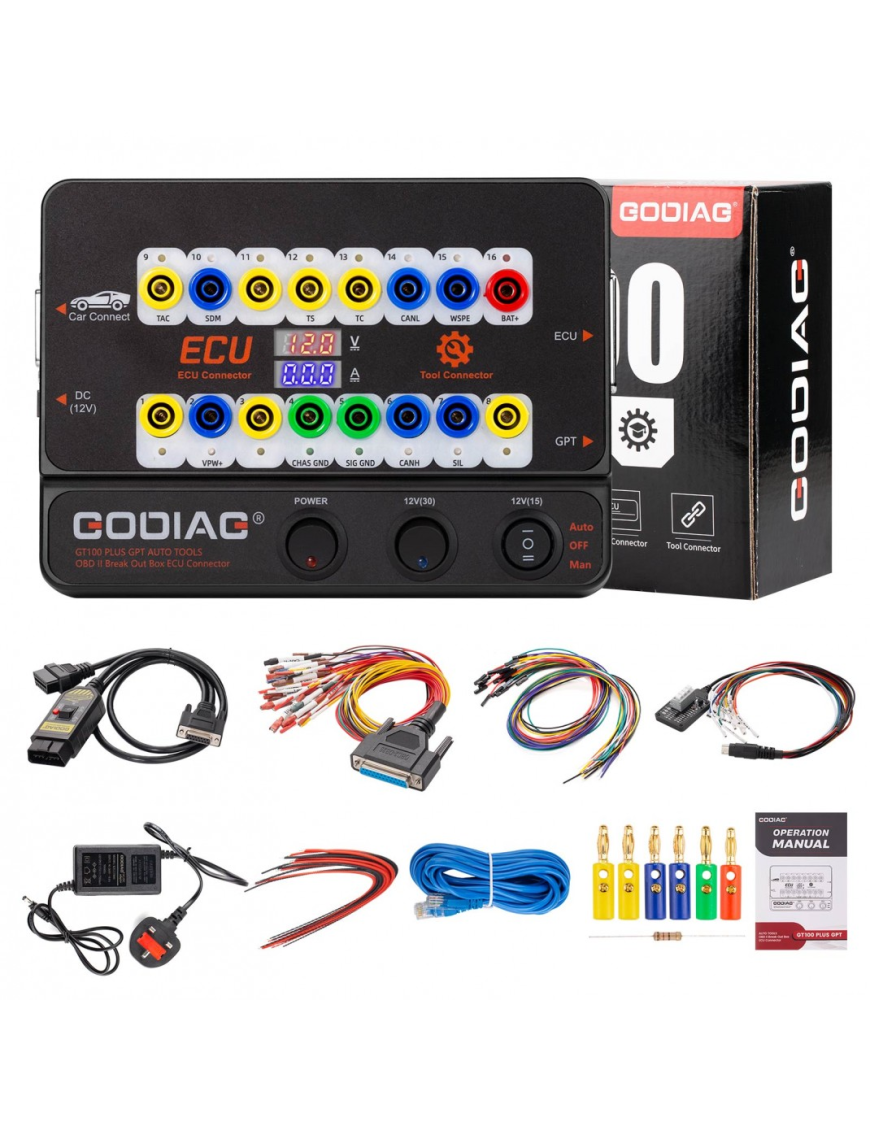

Package Includes

• 1 x GODIAG GT100 PLUS GPT host
• 1 x GPT connecting cable
• 1 x Ethernet cable
• 1 x OBD 2-in-1 extension cable
• 1 x Colored jumper cable
• 1 x 12V power supply
• 1 x 120 Ohm resistor
• 6 x Banana plugs
• 24 x Wire accessories / Dupont 2.54 mm connector female pins
• 1 x Manual

Note: GODIAG GT100 PLUS GPT does not perform diagnostics, programming or key matching independently. It works as a connection, signal conversion and power distribution platform together with compatible diagnostic tools, ECU programmers, flash tools or key programmers.
